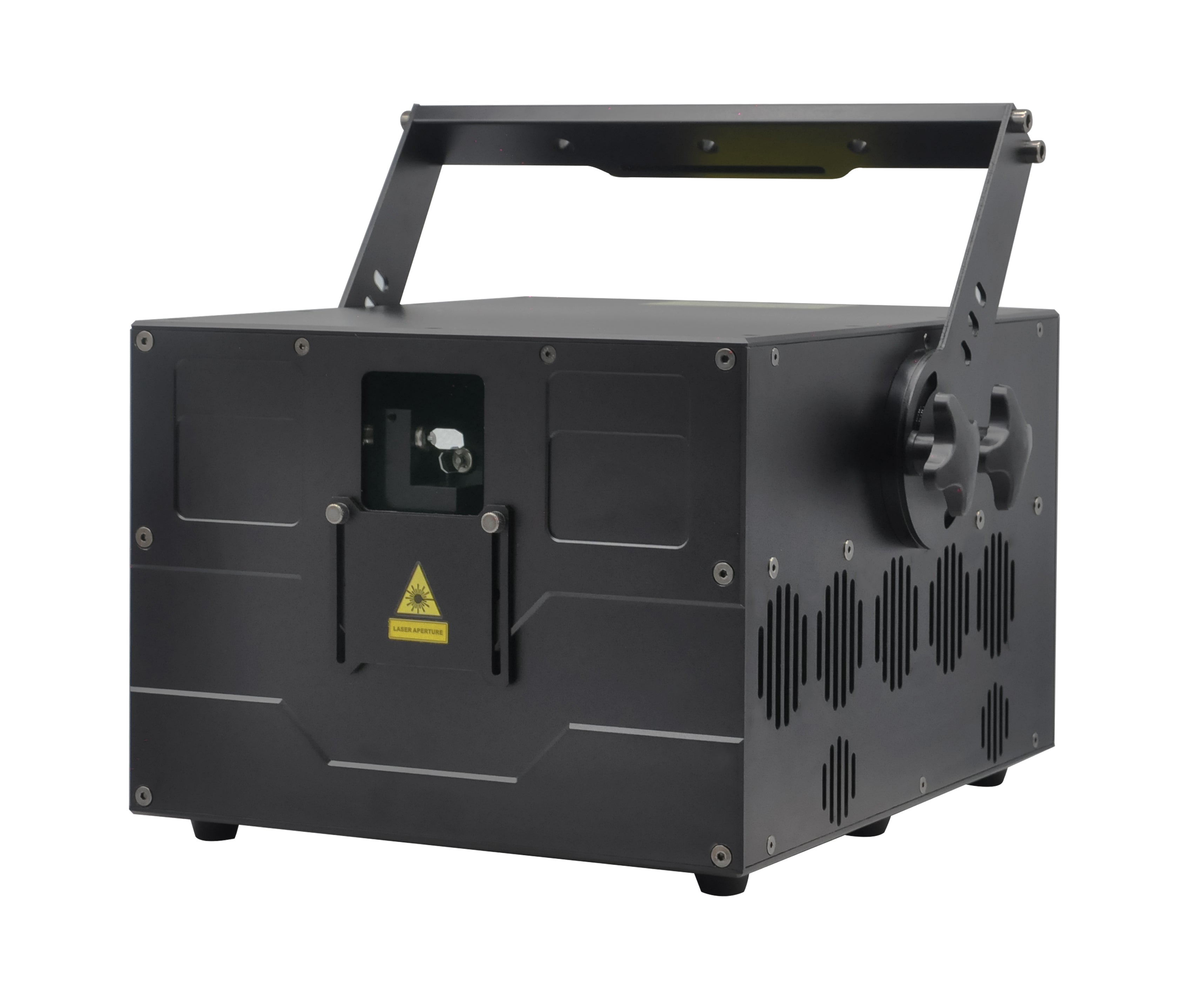

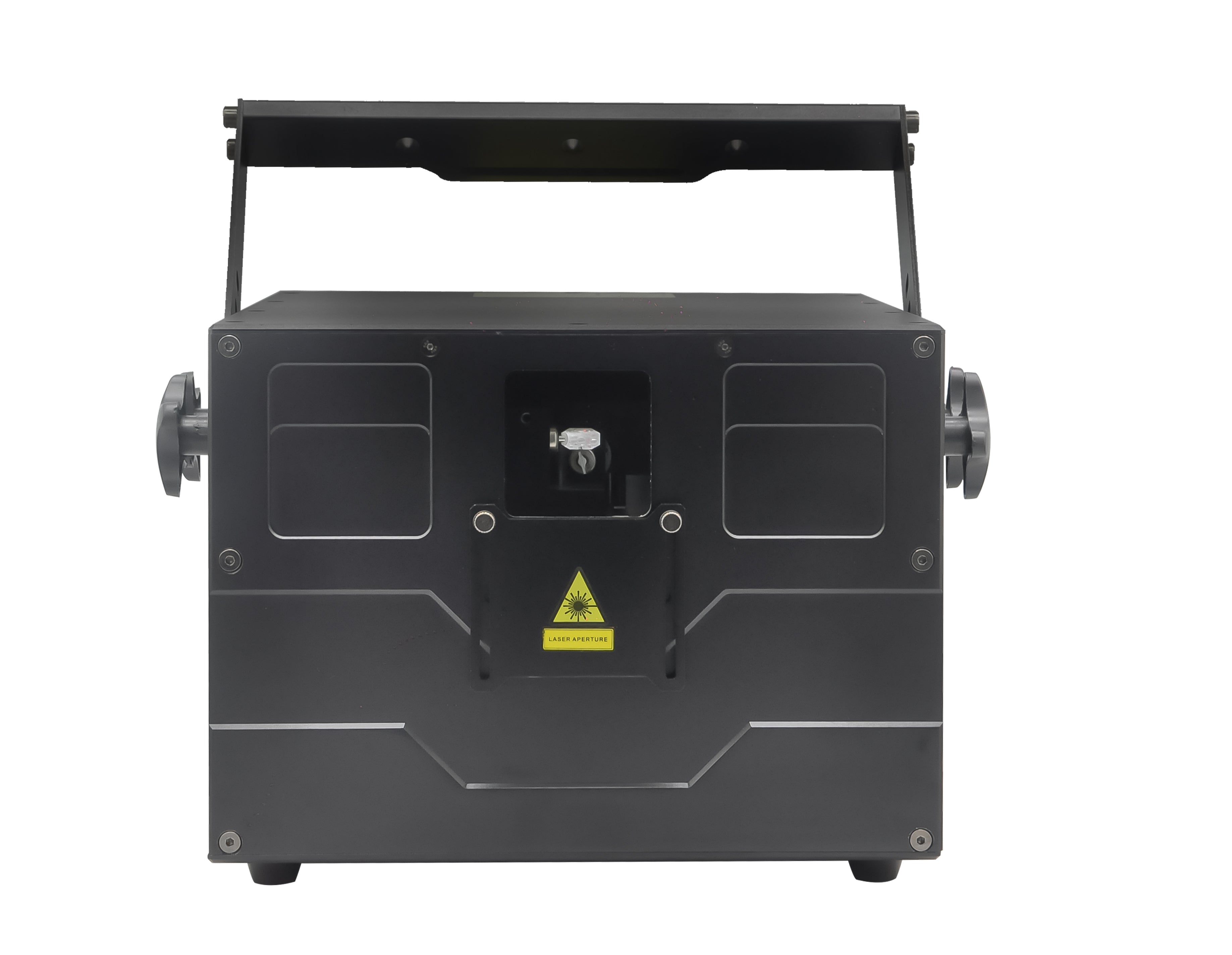

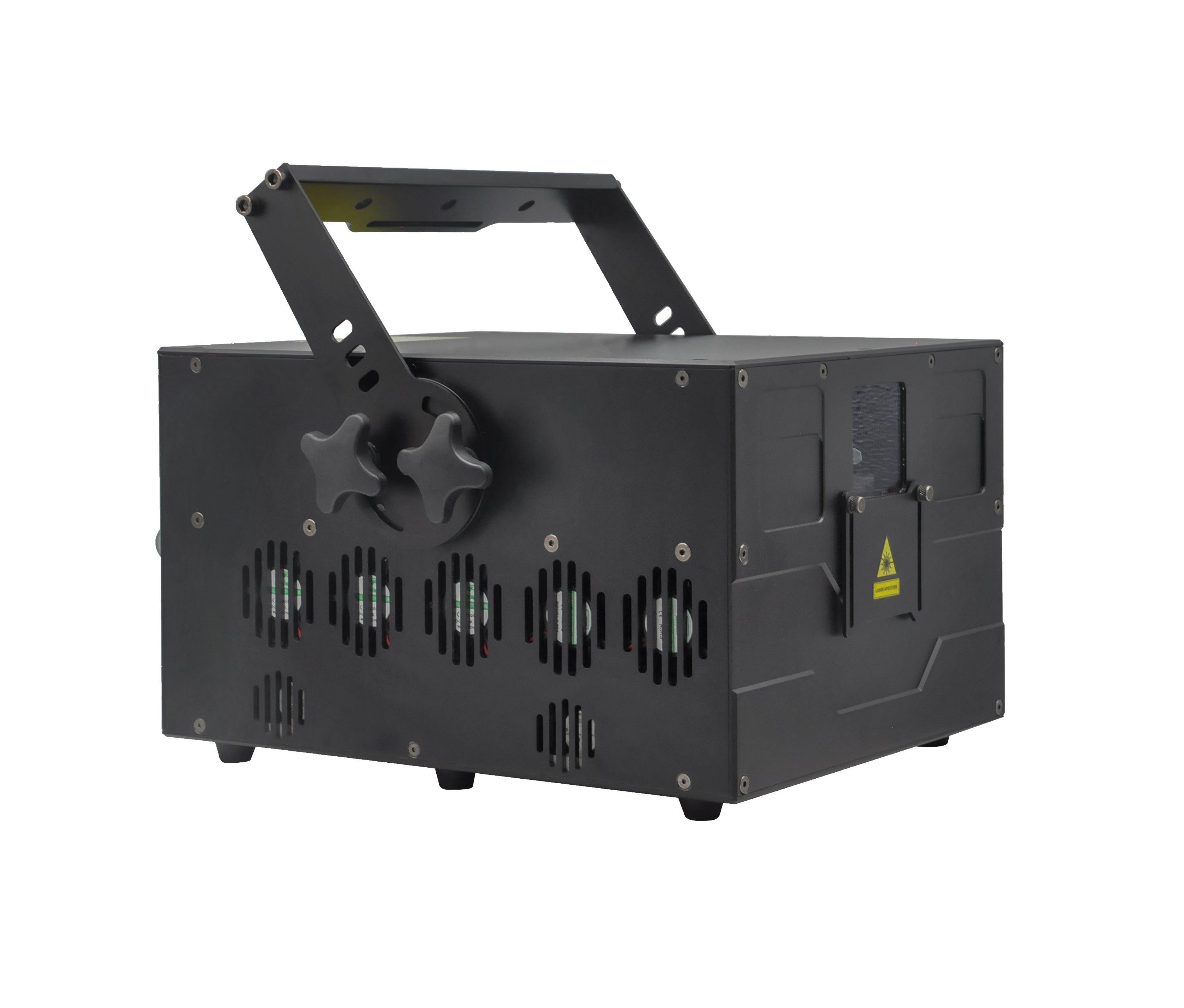

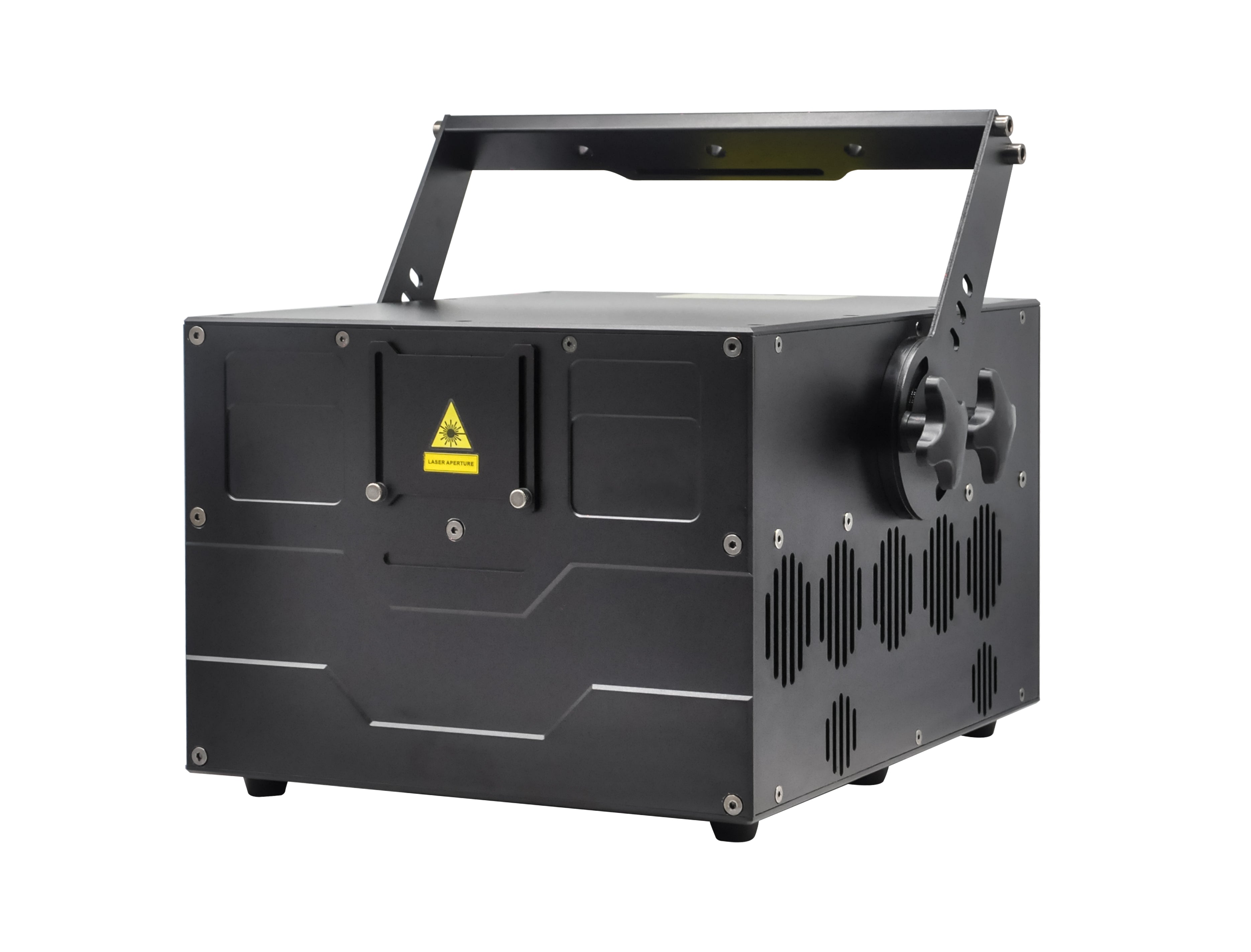

High-power RGB laser projector with 6W red, 6W green, and 10W blue laser modules, delivering stunning beam shows for indoor and outdoor stages.
22W full-color RGB laser projector, equipped with 6W red light, 6W green light, and 10W blue light laser modules, suitable for indoor and outdoor stages, presenting a stunning beam effect.
| Specification | Details |
|---|---|
| Power Supply | AC 100–250V, 50/60Hz, Max 500W |
| Laser Parameters |
Red: 6W @ 638nm Green: 6W @ 520nm Blue: 10W @ 440nm Beam Size: <6.5 × 5.5 mm Divergence: <1.5 mrad |
| Laser Lifespan | >10,000 hours |
| Laser Safety Class | Class 4 |
| Working Environment | Indoor & Outdoor, -30℃ to +40℃ |
| Scanning System |
High-speed galvo scanner, >40KPPS ILDA @8° Max Scan Angle: 60° X-axis mirror: 12 × 14 mm Y-axis mirror: 10 × 20 mm Max Beam Spot: 7 × 8 mm |
| Control Modes |
ILDA (PC control), DMX-512, PRG (TF card playlist), ILD (TF card ILDA files), Sound Active, Auto Run Optional: Pangolin FB4 with SFS safety protection |
| TF Card Playback | Supports standard ILDA files (.ILD) |

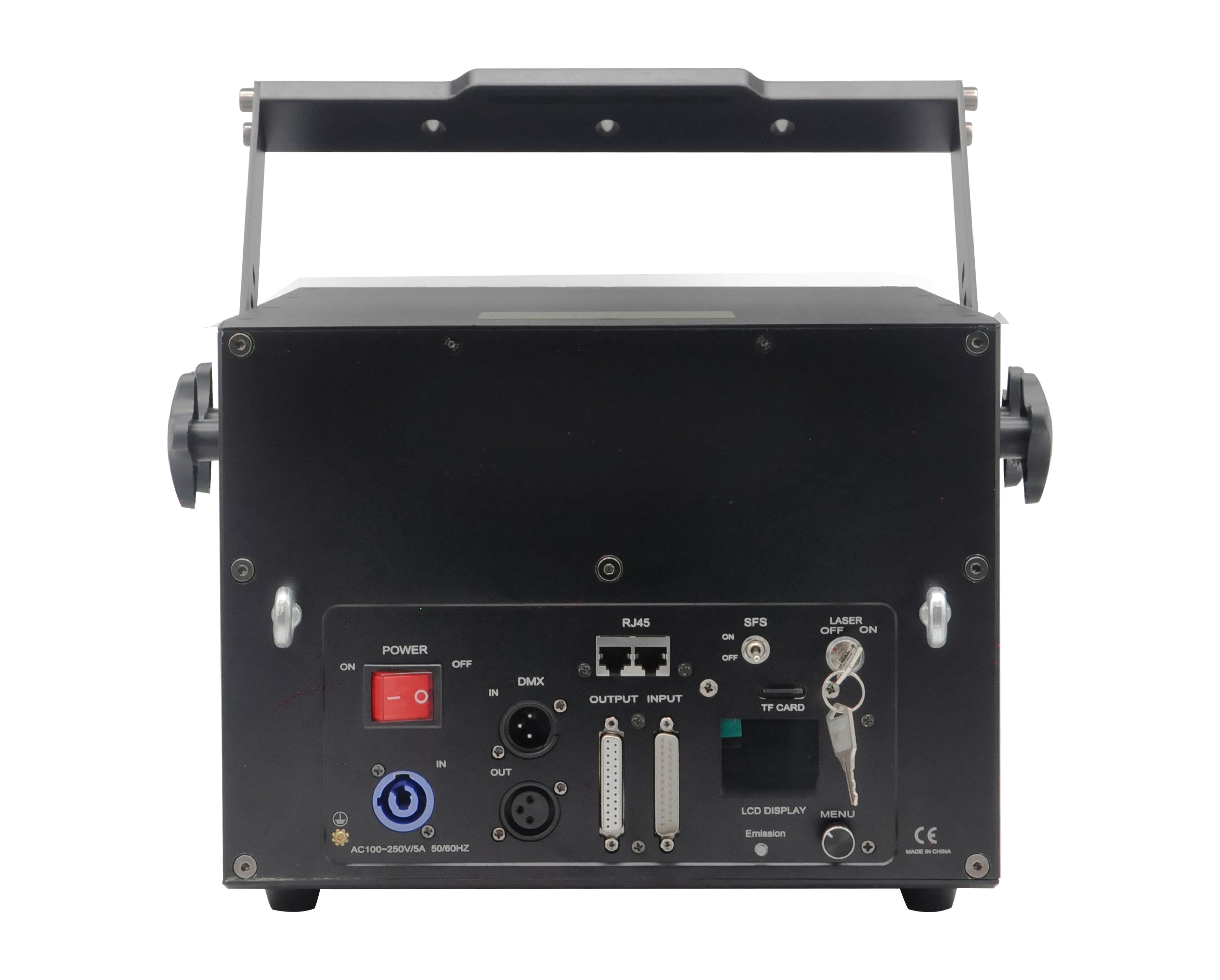

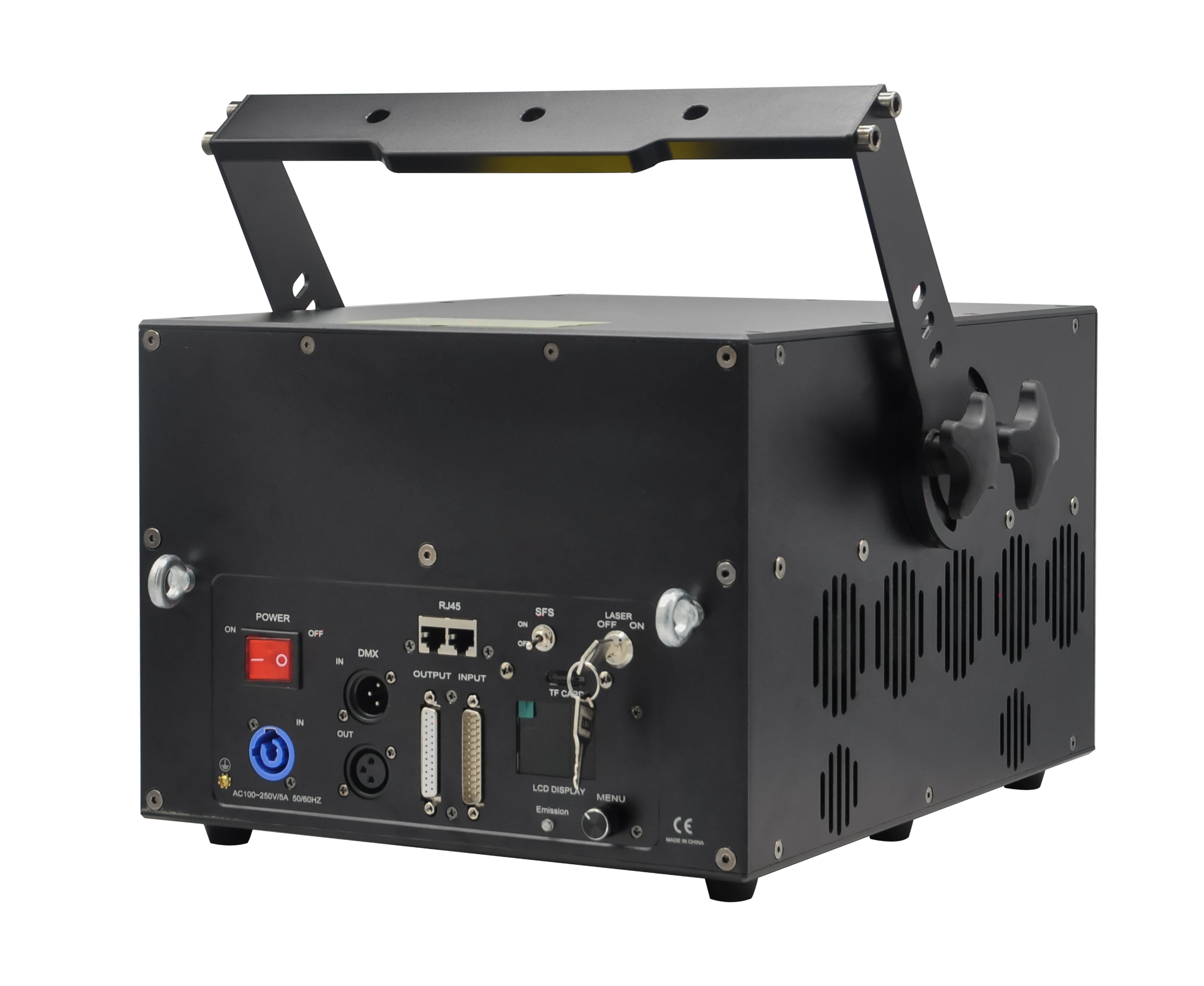

| Control Interfaces | DB25 ILDA, RJ45 ILDA (300m no signal loss), 3-pin XLR DMX |

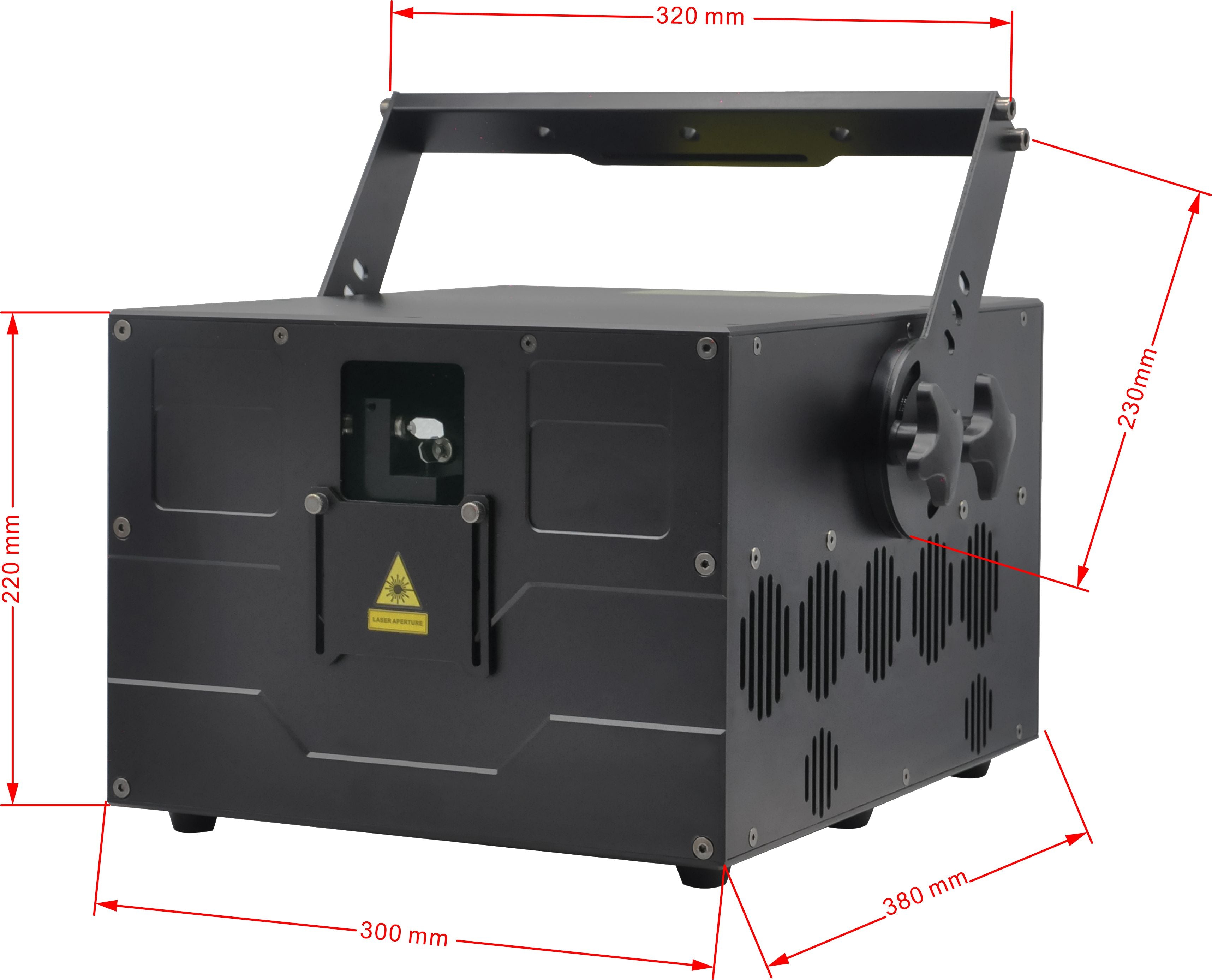

| Dimensions (L×W×H) | 300 × 380 × 220 mm |
| Net Weight | 19.5 KG |
#LaserProjector #RGBLaser #ILDA #DMX512 #StageLighting #FullColorLaser #PangolinFB4
| Specification | parameter |
|---|---|
| power supply | AC 100–250V, 50/60Hz, maximum power 500W |
| Laser parameters |
Red light: 6W @ 638nm Green light: 6W @ 520nm Blue light: 10W @ 440nm Spot size: <6.5 × 5.5 mm Divergence angle: <1.5 mrad |
| Laser life | >10,000 hours |
| Laser safety level | Class 4 |
| Work Environment | Indoor/outdoor, -30℃ to +40℃ |
| Scanning system |
High-speed, high-torque galvanometer, speed >40KPPS ILDA @8° Maximum scanning angle: 60° X-axis lens: 12 × 14 mm Y-axis lens: 10 × 20 mm Maximum accommodating spot: 7 × 8 mm |
| Control Mode |
ILDA (PC control), DMX-512, PRG (TF card playlist), ILD (TF card ILDA file playback), voice control, self-propelled Optional PANGOLIN FB4 control system with additional SFS single-point protection |
| TF card format | Supports ILDA standard files (.ILD) |
| Control interface | Standard DB25 ILDA interface, RJ45 ILDA interface (300 meters without attenuation), 3-pin DMX XLR interface |
| Dimensions (length × width × height) | 300 × 380 × 220 mm |
| net weight | 19.5 KG |
#LaserProjector #RGBLaser #ILDA #DMX512 #StageLighting #FullColorLaser #PangolinFB4
