Description

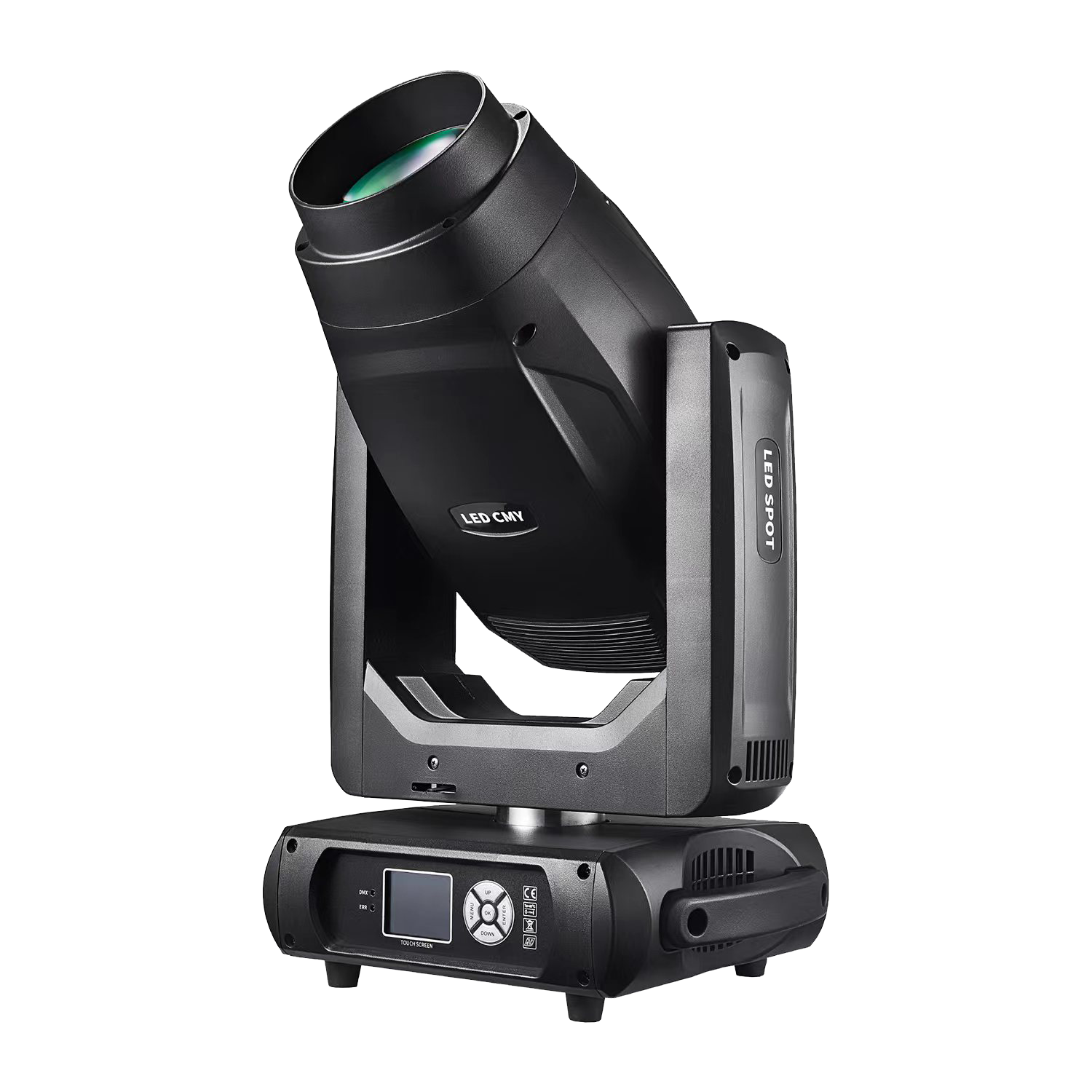

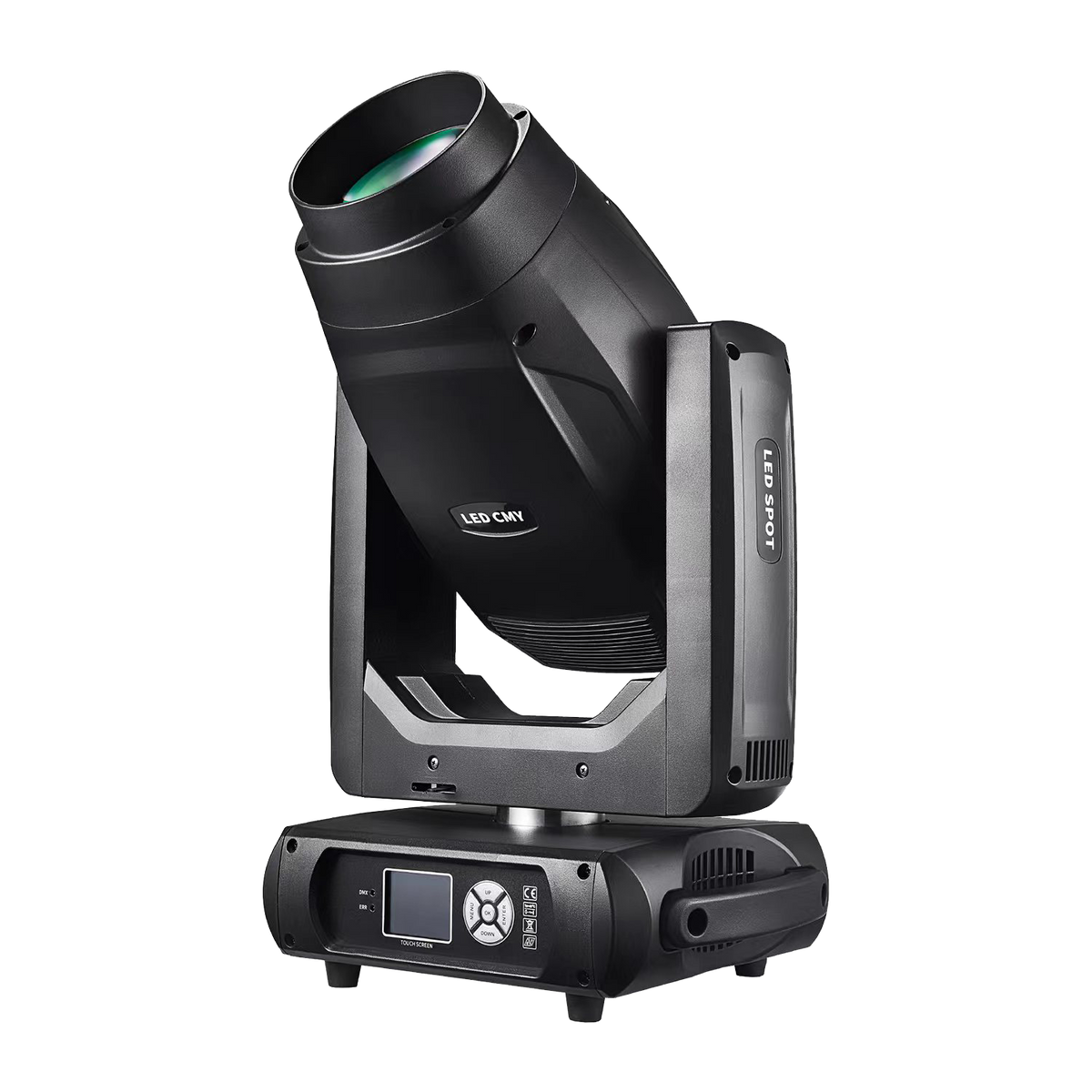

x500W 3-in-1 LED Moving Head Light
Brief Description:
High-power 500W 3-in-1 LED moving head light with linear focus and dimming, dual prism system, dynamic gobo and color effects, and smooth high-speed strobe. Ideal for concerts, theaters, and professional stage lighting applications.
Key Features:
- Powerful LED Source: 500W white LED module with 50,000-hour lifespan and 80,000 lm at 4 meters.
- Precise Movement: 540° pan and 270° tilt with 16-bit precision and electronic correction.
- Dimming & Focus: 0–100% linear dimming, linear focus range 4–50m, zoom 4–35°.
- Color & Gobo Effects: 14 colors + open, CMY + CTO mixing, 14 fixed gobos + white, 8 rotating glass gobos with independent rotation.
- Prism System: Single 6-facet prism and 16-facet prism, independent forward/reverse rotation.
- Strobe: 0–30 flashes/sec, adjustable speed, with strobe macro function.
- Control & Display: DMX512 with RDM support, LCD display with touch and button operation, software upgradeable.
- Cooling & Safety: Axial fan cooling, electronic overheat protection, durable high-temperature resistant plastic housing.
Technical Specifications:
| Color Temperature | 8000K |
| CRI | 75 |
| Input Voltage | AC110–240V, 50/60Hz |
| LED Source | 500W white LED module |
| LED Lifespan | 50,000 hours |
| Lumens | 80,000 lm @ 4m |
| Total Power | 600W |
| DMX Channels | 22CH |
| Pan Movement | 540° (16-bit precision, electronic correction) |
| Tilt Movement | 270° (16-bit precision, electronic correction) |
| Dimming System | 0–100% linear |
| Focus System | Linear, 4–50m |
| Zoom | 4–35° |
| Frost Effect | 1 independent frost filter, soft beam |
| Strobe | 0–30 flashes/sec, adjustable speed, strobe macro function |
| Color | 14 colors + open, half-color mixing, CMY + CTO system |
| Fixed Gobos | 14 + open |
| Rotating Gobos | 8 glass gobos, independent forward/reverse rotation |
| Prism System | Single 6-facet prism + 16-facet prism, independent forward/reverse rotation |
| Control Functions | Console reset, auto-run mode, master/slave mode |
| Display | LCD touch + button |
| Control Signal | DMX512 with RDM, software upgradeable |
| Cooling | Axial fan enhanced |
| Safety | Electronic overheat protection with auto power-off on fault |
| Housing | High-temperature resistant plastic |
| Operating Environment | -20°C ~ 40°C |
| IP Rating | IP20 |
| Net Weight | 22.5 kg |
| Dimensions (L×W×H) | 38 × 27 × 65 cm |
