Description

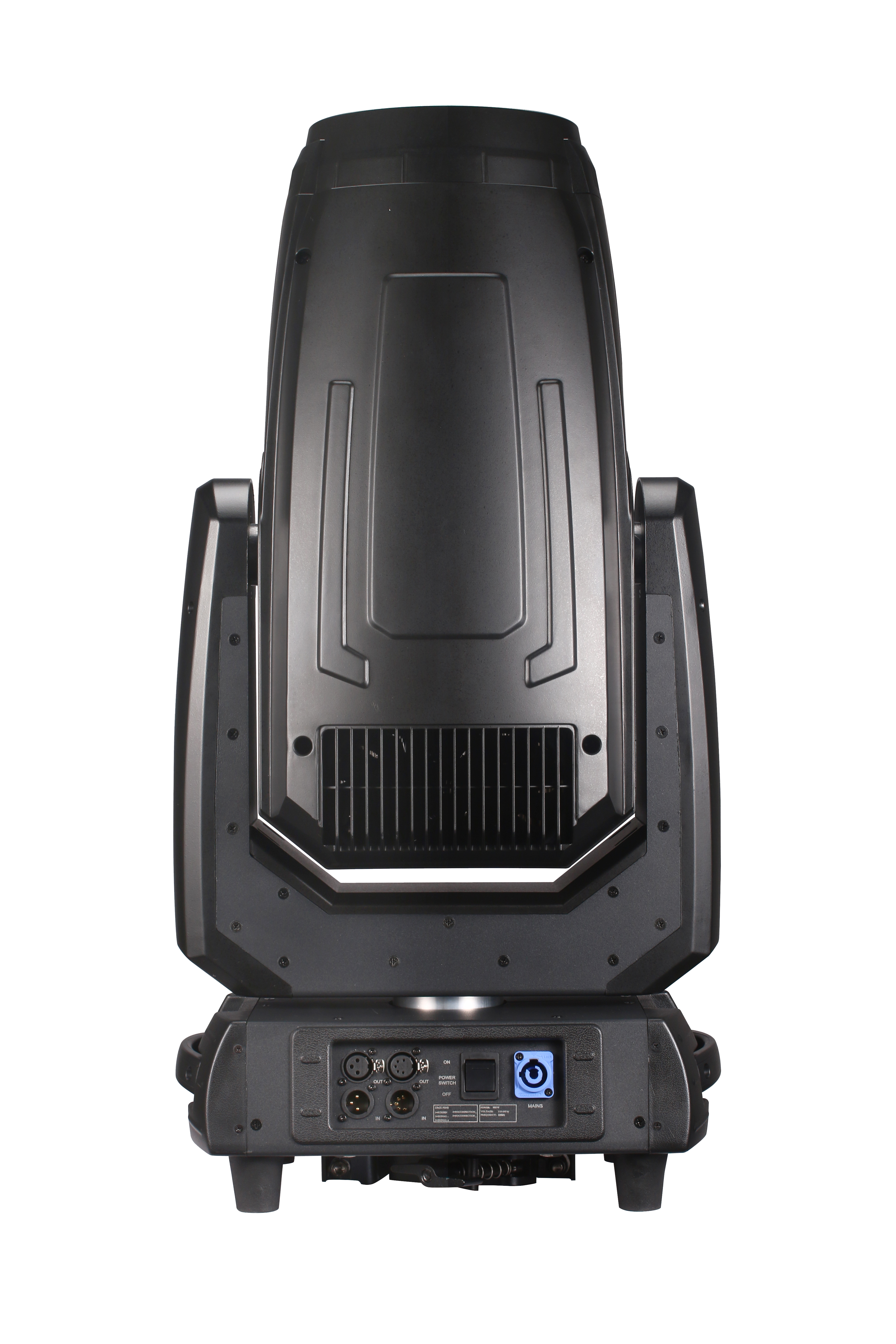

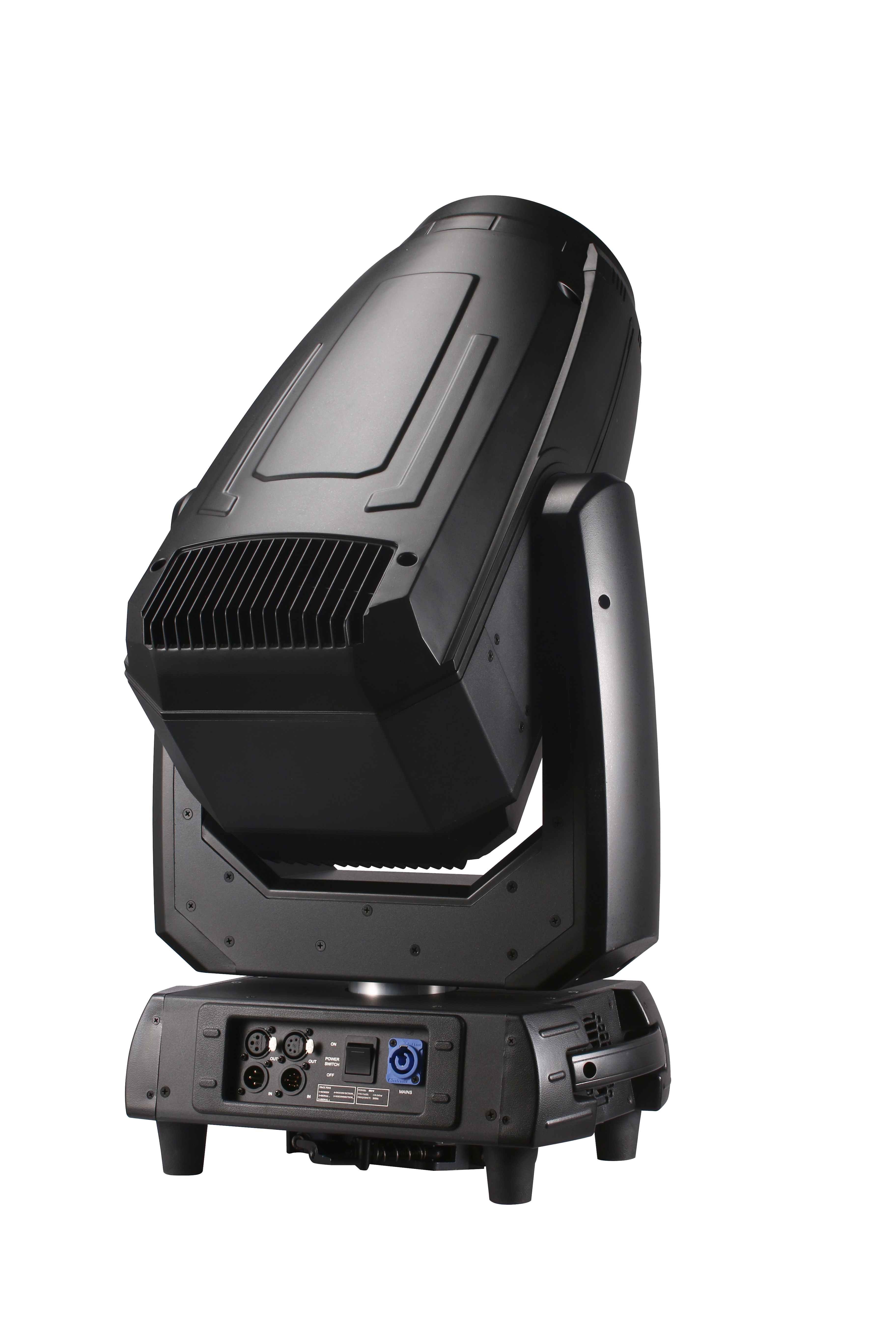

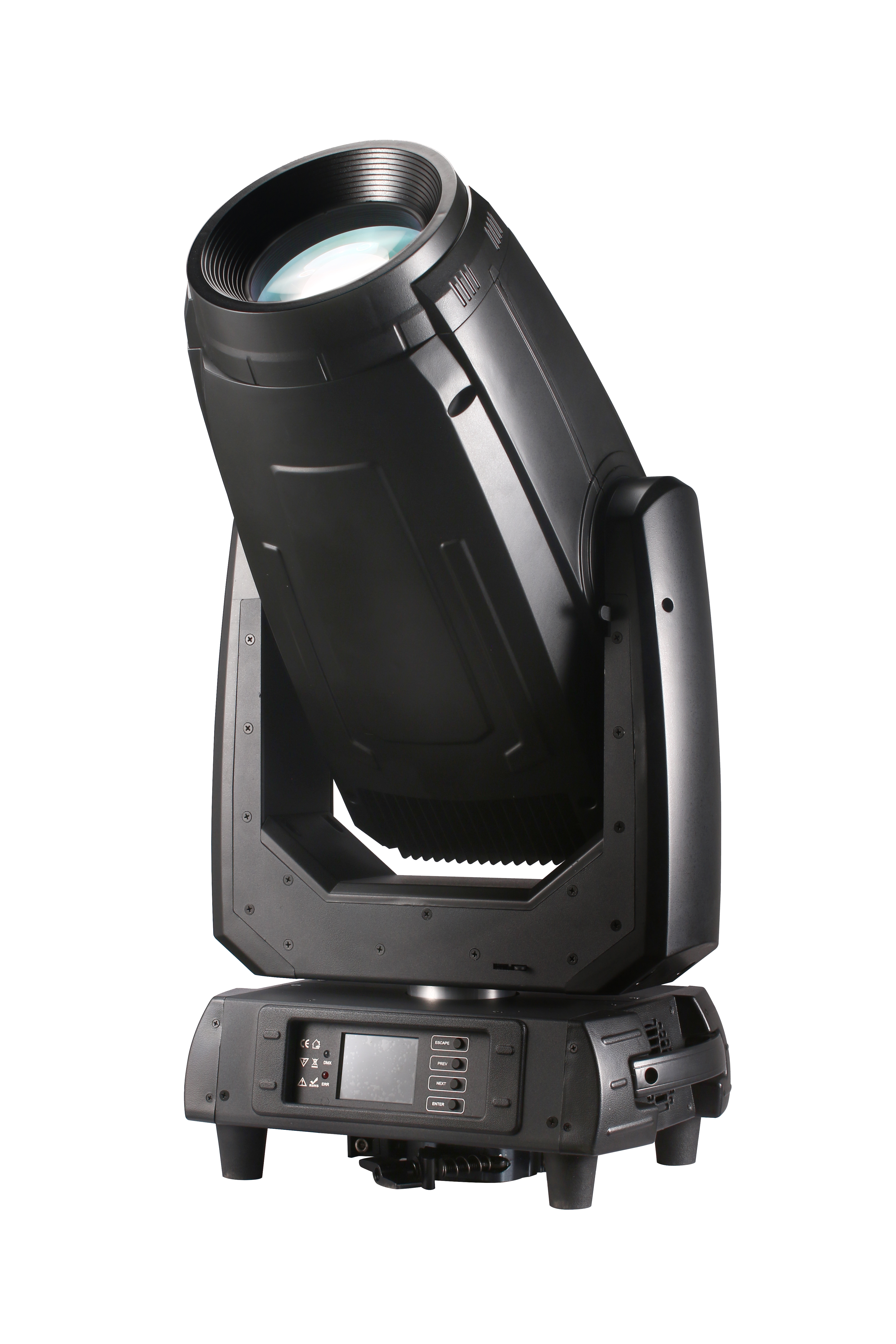

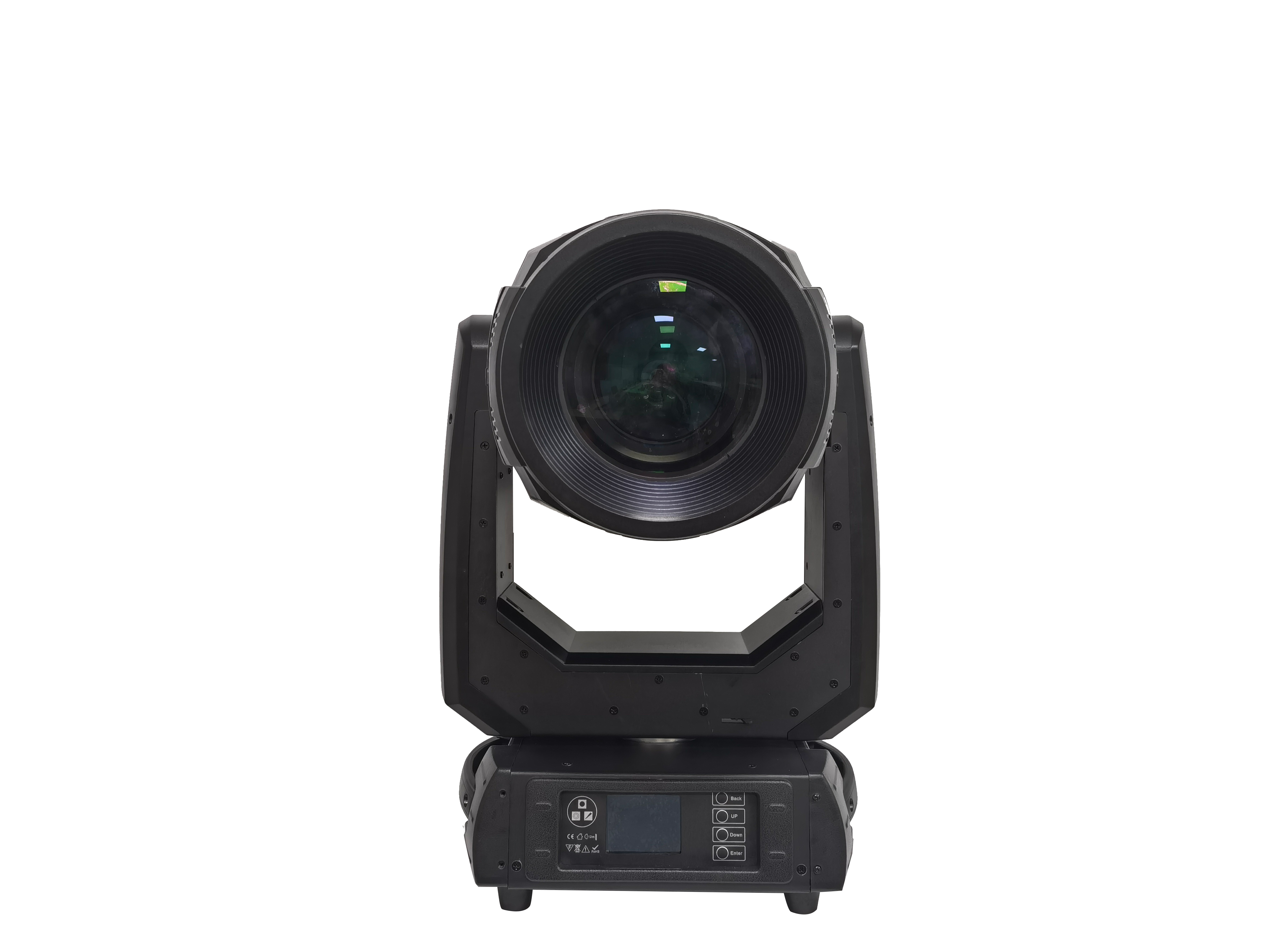

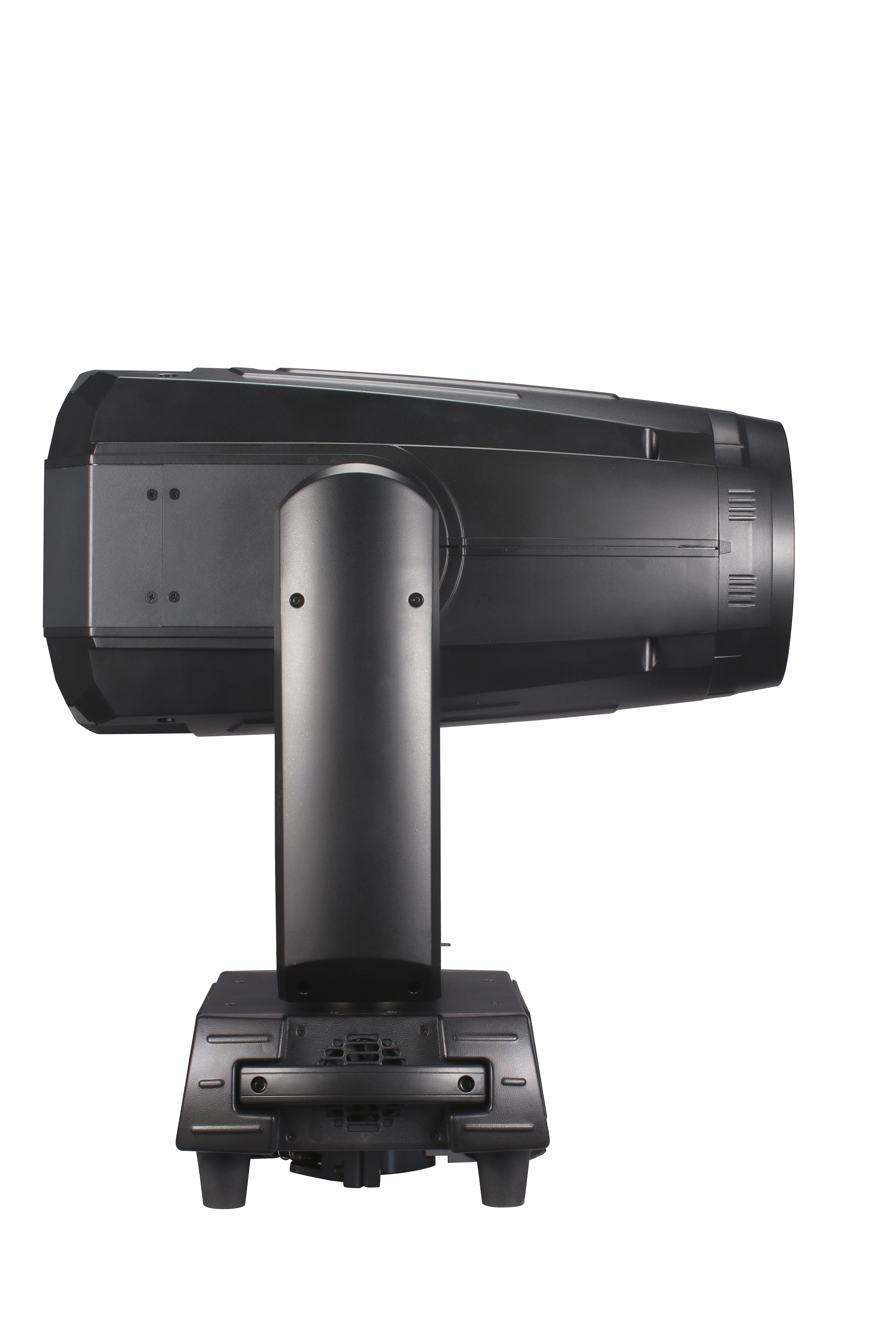

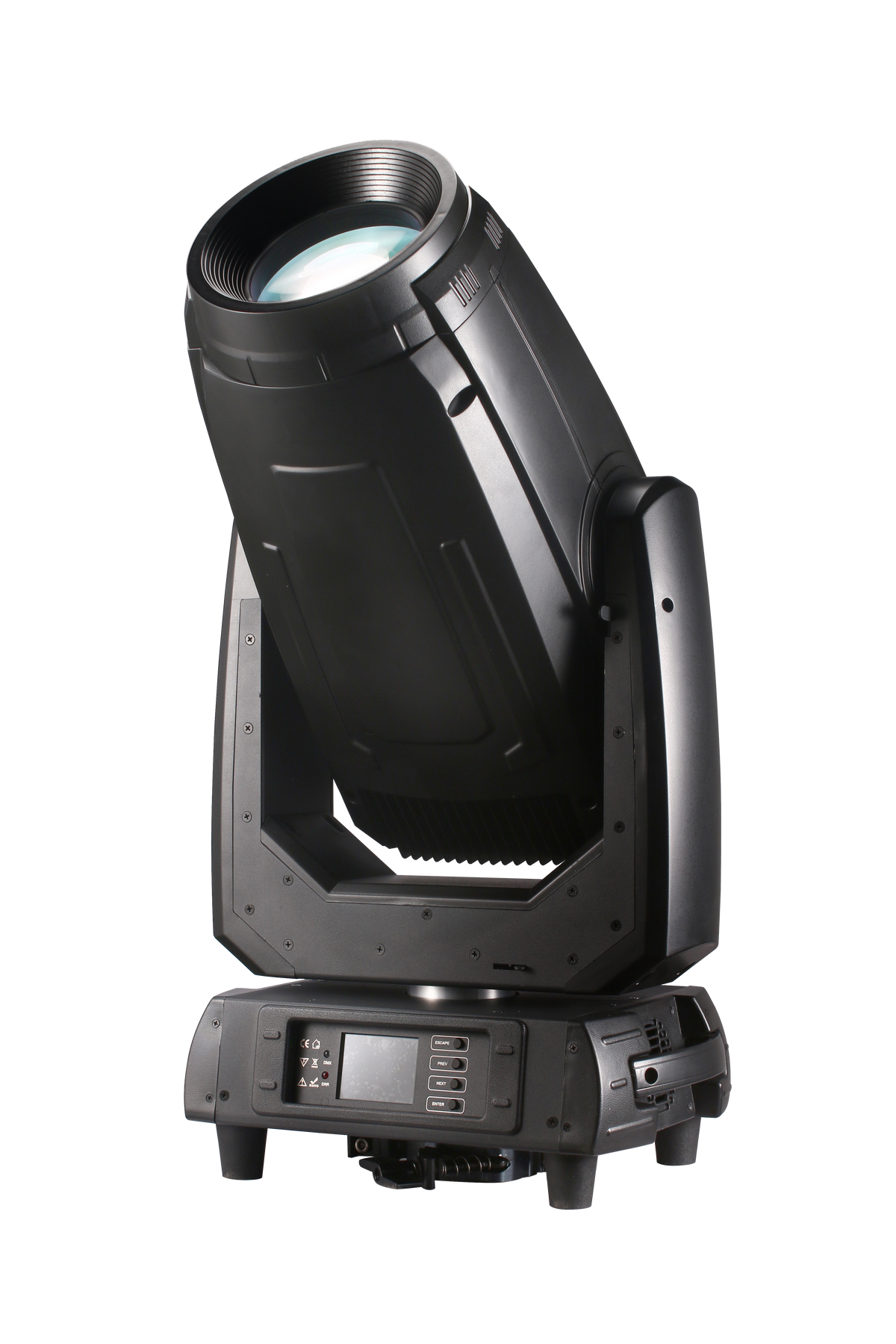

x🌈 800W LED Moving Head Spot/Wash with Graphic Effects
EN: The 800W LED Moving Head features high-precision glass optics with 5.5°–50° linear motorized zoom. It includes a full graphic gobo system, 1 rotating gobo disc with 7 patterns, 1 fixed gobo disc with 9 patterns, dynamic effect disc, dual color wheels with 10 colors, CMY mixing, CTO linear color temperature, 0–100% linear dimming, strobe 1–25Hz, prism and frost effects, and a 2.8" color touchscreen. Supports DMX512, RDM, auto, sound, scene, master/slave modes, with optional wireless transmission.
English: 800W LED moving head light, high-precision glass lens, 5.5°~50° linear high-speed zoom. Equipped with a full range of graphic cutting systems, 1 rotating pattern disk with 7 patterns, 1 fixed pattern disk with 9 patterns, 1 dynamic effect disk, 2 color disks with 10 colors, CMY infinite color mixing, CTO linear color temperature, aperture 0–100% linear adjustment, strobe 1–25Hz, hexagonal prism with bidirectional rotation, independent fog mirror, and color 2.8-inch touch screen. Supports DMX512, RDM, self-propelled, voice control, scene, master-slave mode, and optional wireless transmission.
✨ Key Features |
-
EN: High-brightness 800W LED module.
Chinese: High brightness 800W LED module -
EN: Motorized zoom 5.5°–50°, linear and uniform beam.
Chinese: Electric zoom 5.5°–50°, uniform light spot -
EN: Full graphic gobo system with rotating and fixed gobos.
Chinese: All-round graphic cutting system, rotating + fixed pattern -
EN: Dynamic effect disc simulating flames, water, etc.
Chinese: Dynamic effect disk, can simulate flame, water and other effects -
EN: Dual color wheels with 10 colors, rainbow effect, half color, linear adjustment.
Chinese: Two-color disc, 10 colors, rainbow effect, half-color and linear adjustment -
EN: CMY mixing and CTO linear color temperature adjustment.
Chinese: CMY infinite color mixing, CTO linear color temperature -
EN: 0–100% linear dimming with multiple macros.
Chinese: Aperture 0–100% linear adjustment, multiple macro functions -
EN: Strobe 1–25Hz, pulse, synchronous/asynchronous strobe modes.
Chinese: Strobe 1-25Hz, pulse, synchronous, asynchronous strobe -
EN: Prism: 1 six-facet prism with bidirectional rotation.
Prism : 1 hexagonal prism, bidirectionally rotatable -
EN: Frost and independent haze filter.
Chinese: Atomization: 1 independent atomization mirror -
EN: 2.8" color touchscreen, bilingual menu.
Chinese: Color 2.8-inch touch screen, Chinese and English menu switching -
EN: Pan/Tilt: 540°/270° with 16-bit fine adjustment, auto correction.
Chinese: Horizontal 540° / Vertical 270°, 16-bit precision fine-tuning, automatic error correction -
EN: DMX512, RDM, auto, sound, scene, master/slave modes, optional wireless.
Chinese: Control mode: DMX512, RDM, self-propelled, voice control, scene, master-slave mode, optional wireless transmission
📌 Product Specifications |
| Specification | Details |
|---|---|
| Voltage | AC100–240V / 50–60Hz |
| Power | 1000W |
| LED Source | 800W LED module |
| LED Lifespan | 20,000 hours |
| Color Temperature | 6500K, CRI 70/90 (with filter) |
| Zoom | 5.5°–50°, linear motorized |
| Graphic Gobo System | Rotating: 7 patterns, bidirectional, adjustable speed, 16Bit fine adjustment; Fixed: 9 patterns, bidirectional, adjustable speed |
| Effect Disc | Dynamic effects: flame, water, etc. |
| Color Wheels | 2 wheels, 10 colors, rainbow effect, half color, linear adjustment |
| CMY/CTO | CMY mixing, CTO linear adjustment |
| Aperture/Dimming | 5–100% linear, 0–100% linear dimming, macros |
| Strobe | 1–25Hz, pulse, synchronous/asynchronous |
| Prism | 1 six-facet, bidirectional rotation |
| Frost/Haze | Independent haze filter |
| Display | 2.8" color touchscreen, bilingual |
| Pan/Tilt | 540°/270°, 16Bit, auto correction |
| Control Modes | DMX512, RDM, auto, sound, scene, master/slave, optional wireless |
| Control Channels | 42/43/49/50 channels |
| Protection | IP20 |
| Net Weight | 26 kg |
| Dimensions | 38 × 24 × 74 cm |
| Gross Weight | 30 kg (carton 1 pcs) / 94 kg (flight case 2 pcs) |
| Packing Size | 64 × 48.5 × 68.5 cm (carton 1 pcs) / 96 × 45 × 99 cm (flight case 2 pcs) |
🔖 Recommended Tags |
#LEDMovingHead #GraphicGobo #StageLight #Spot #Wash #Beam #DMX512 #StrobeEffect #StageLighting
